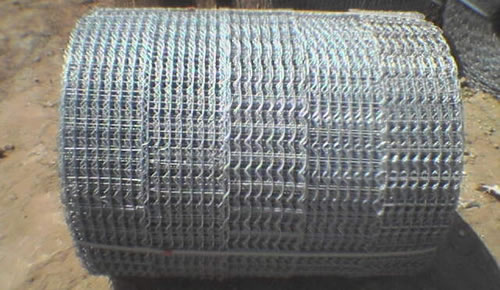

Galvanized Welded
Wire Mesh
Welded wire mesh is used as guards in buildings and
factories, as animal enclosure and fence in agriculture;
it is also used in horticulture industry as tree guards,
plant protection.
Material: Low carbon steel wire, stainless steel wire
Weaving and characteristics:
Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
Electric galvanizing after weaving
Weaving with electric galvanized iron wire
PVC coated welded wire mesh
Hotdipped welded wire mesh is galvanised by hotdipping
after welding, having good corrosive resistance and
qualities which are not usually found in average wire
mesh.
Electro welded wire mesh is characteristic of its
fine qualities, sturdiness and durable, economy as
well as attractiveness.
PVC coated welded wire mesh is made of quality welded
low carbon steel wire mesh galvanized before, then
coated with PVC powder or PE powder. The coated layer
is even, strong adhesiveness and bright luster with
long live good anti- corrosive prosperity. All kinds
of colors can be coated according to customers' special
requirements.
|
Mesh |
Wire
Dia. |
| 1/4"X1/4"
|
BWG23 |
| 3/8"X3/8"
|
BWG19,20,21,22 |
| 1/2"X1/2"
|
BWG16,17,18,19,20,21,22,23,24 |
| 3/4"X3/4" |
BWG16,17,18,19,20,21,22 |
| 1"X1/2"
|
BWG16,17,18,19 |
| 1"X1"
|
BWG14,15,16,17,18,19,20,21 |
| 1"X2"
|
BWG14,15,16 |
| 2"X2"
|
BWG14,15,16,18 |
|
