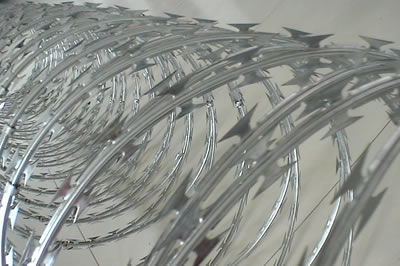

Material applied for razor type barbed wire and barbed tape wire: Galvanized razor wire or stainless steel razor coils.

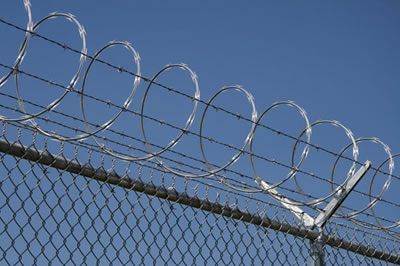

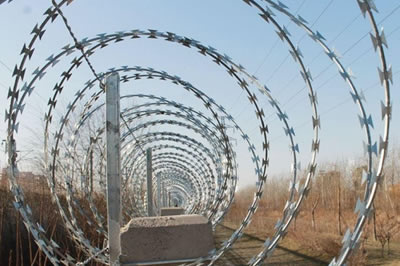

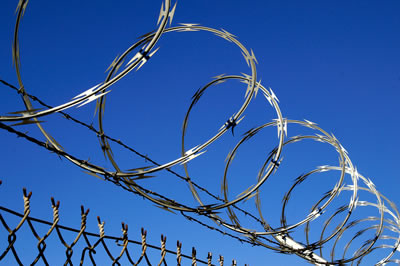

Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencings.
Razor size and coil size are listed as follows.
 |
 |
 |
 |
Blade Specification |
Blade Forms |
Blade Thickness |
Core Wire Dia. |
Blade Length |
Blade Width |
Blade Space |
BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
|
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
|
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Ex. Dia. |
No. of Turns |
Standard Covering Length |
Production Model |
Remarks |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-12.18.22 |
Cross type |
600mm |
86 |
14M |
BTO-12.18.22 |
Cross type |
700mm |
72 |
12M |
BTO-12.18.22 |
Cross type |
800mm |
64 |
10M |
BTO-12.18.22 |
Cross type |
960mm |
52 |
9M |
BTO-12.18.22 |
Cross type |
