Hexagonal Wire Netting

Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.

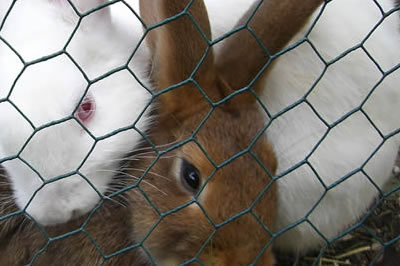

Application: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

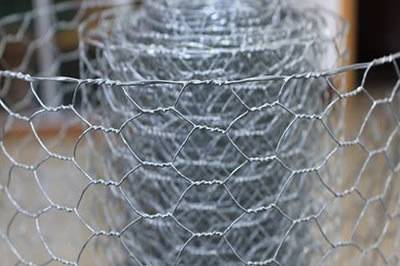

Galvanized hexagonal wire netting
mesh Min. Gal.v.
G/SQ.M
Width
Wire Gauge (Diameter)
BWG
Inch mm Tolerance(mm)
3/8"
10mm
±1.0
0.7mm - 145
2' - 1M
27, 26, 25, 24, 23
1/2"
13mm
±1.5
0.7mm - 95
2' - 2M
25, 24, 23, 22, 21
5/8"
16mm
±2.0
0.7mm - 70
2' - 2M
27, 26, 25, 24, 23, 22
3/4"
20mm
±3.0
0.7mm - 55
2' - 2M
25, 24, 23, 22, 21, 20, 19
1"
25mm
±3.0
0.9mm - 55
1' - 2M
25, 24, 23, 22, 21, 20, 19, 18
1-1/4"
31mm
±4.0
0.9mm - 40
1' - 2M
23, 22, 21, 20, 19, 18
1-1/2"
40mm
±5.0
1.0mm - 45
1' - 2M
23, 22, 21, 20, 19, 18
2"
50mm
±6.0
1.2mm - 40
1' - 2M
23, 22, 21, 20, 19, 18
2-1/2"
65mm
±7.0
1.0mm - 30
1' - 2M
21, 20, 19, 18
3"
75mm
±8.0
1.4mm - 30
2' - 2M
20, 19, 18, 17
4"
100mm
±8.0
1.6mm - 30
2' - 2M
19, 18, 17, 16
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

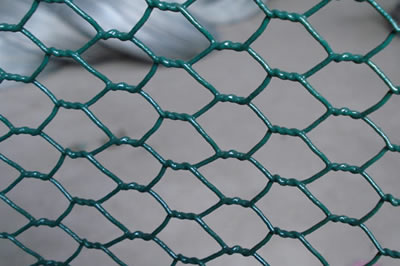

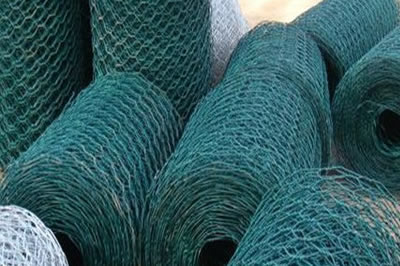

PVC Coated Hexagonal Wire Netting
Mesh
Wire Gauge (MM) Width
Inch
MM
1/2"
13mm
0.6mm - 1.0mm
2' - 2M
3/4"
19mm
0.6mm - 1.0mm
2' - 2M
1"
25mm
0.7mm - 1.3mm
1' - 2M
1-1/4"
30mm
0.85mm - 1.3mm
1' - 2M
1-1/2"
40mm
0.85mm - 1.4mm
1' - 2M
2"
50mm
1.0mm - 1.4mm
1' - 2M

We also offer other specifications you need
